Channel Framed Mirrors (850 Series)
This stainless steel framed mirror is for all commercial installations, where concealed tamper resistant or vandal resistant fixings are
required at an economical price. Available with optional stainless steel shelf.
TYPE 302 High polished stainless steel frame
|
SERIES 850
Channel Frame: One piece frame formed of 3/8 (9.53mm)X 1/2 (12.7mm) X 3/8 (9.53mm) type T430 BA stainless steel. Frame has square,tightly mitered corners, with unique concealed
screw fixings to ensure easy field mirror replacement. Plastic protective coating placed on frame.
Mirror: No.1 selected polished 5 mm float glass with chemically deposited silver, electrolytically copper plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type B and guaranteed against silver spoilage for a period of ten years.
|
|
SERIES 850 - ADJUSTABLE TILT
Channel Frame: One piece frame formed of 3/8 (9.53mm)X 1/2 (12.7mm) X 3/8 (9.53mm) type T430 BA stainless steel. Frame has square,tightly mitered corners, with unique concealed
screw fixings to ensure easy field mirror replacement. Plastic protective coating placed on frame.
Mirror: No.1 selected polished 5 mm float glass with chemically deposited silver, electrolytically copper plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type B and guaranteed against silver spoilage for a period of ten years.
|
|---|
| | | |
|---|
|
SERIES 855 - INTEGRAL SHELF
Channel Frame: One piece frame formed of 3/8 (9.53mm)X 1/2 (12.7mm) X 3/8 (9.53mm) type T430 BA stainless steel. Frame has square,tightly mitered corners, with unique concealed screw fixings to ensure easy field mirror
replacement. Plastic protective coating placed on frame.
Mirror: No.1 selected polished 5 mm float glass with chemically deposited silver, electrolytically copper
plated followed by a heavy coating of tough elastic paint.Mirrors conforming to GSB 12-GD5A Type B and guaranteed against silver spoilage for a period of ten years.
|
|
SERIES 850 - FIXED TILT
Fixed Tilt Frame: One piece frame formed of 3/8 (9.53mm)X 1/2 (12.7mm) X 3/8 (9.53mm) type
T430 BA stainless steel. Frame has square,tightly mitered corners, with unique concealed screw fixings to ensure easy field mirror replacement. Plastic protective coating placed
on frame.
Mirror: No.1 selected polished 5 mm float glass with chemically deposited silver, electrolytically copper
plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type B and guaranteed against silver spoilage for a period of ten years.
|
| | | |
|---|
|
SERIES 850 - DEMONSTRATION MIRROR
Channel Frame: One piece frame formed of 3/8 (9.53mm)X 1/2 (12.7mm) X 3/8 (9.53mm) type T430 BA stainless steel. Frame has square,tightly mitered corners, with unique concealed
screw fixings to ensure easy field mirror replacement. Plastic protective coating placed on frame.
Mirror: No.1 selected polished 5 mm float glass with chemically deposited silver, electrolytically copper plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type B and guaranteed against silver spoilage for a period of ten years.
|
|
SERIES 850 - SHELF
A separate shelf that can be attached under any Series 850 mirror or on its own.
|
| | | |
|---|
-
Available in Stock and Custom sizes.
-
Standard glazing 5mm Clear Mirror - other glazing options: Acrylic, Tempered, Laminated or Stainless Steel mirror.
|
Angle Framed Mirrors (3200 Series)
This stainless steel framed mirror is for all commercial installations, where concealed tamper resistant or vandal resistant fixings are
required. Available with optional stainless steel shelf.
TYPE 304 #4 Brush Stainless frame.
|
SERIES 3200
Angle Frame: Frame is rigidly formed of . (19mm) X 5/8 (16mm) type 304, 18 gauge #4 brush finished stainless steel. All mitered corners are heliarc welded, ground smooth, and polished to #4 brush finish.
Mirror: No.1 selected polished 5mm float glass with chemically deposited silver, electrolytically copper
plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type 1 B, and guaranteed against silver spoilage for a period of ten years.
|
|
SERIES 3200 - ADJUSTABLE TILT
Angle Frame: Frame is rigidly formed of 3/4 (19mm) X 5/8 (16mm) type 304, 18 gauge #4 brush finished stainless steel. All mitered corners are heliarc welded, ground smooth, and polished to #4 brush finish.
Mirror: No.1 selected polished 5mm float glass with chemically deposited silver, electrolytically copper
plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type B, and guaranteed against silver spoilage for a period of ten years.
|
|---|
| | | |
|---|
|
SERIES 3200 - INTEGRAL SHELF
Angle Frame: Frame is rigidly formed of 3/4 (19mm) X 5/8 (16mm) type 304, 18 gauge #4 brush finished stainless steel. All mitered corners are heliarc welded, ground smooth, and polished to #4 brush finish.
Mirror: No.1 selected polished 5mm float glass with chemically deposited silver, electrolytically copper
plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type 1 B, and guaranteed against silver spoilage for a period of ten years.
|
|
SERIES 3200 - FIXED TILT
Angle Frame: Frame is rigidly formed of 3/4 (19mm) X 5/8 (16mm) type 304, 18 gauge #4 brush finished stainless steel. All mitered corners are heliarc welded, ground smooth, and polished to #4 brush finish.
Mirror: No.1 selected polished 5mm float glass with chemically deposited silver, electrolytically copper
plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type B, and guaranteed against silver spoilage for a period of ten years.
|
| | | |
|---|
|
SERIES 3285 - FULL BACK
Mirror is protected with a special primary back that prohibits the absorption and retention of moisture as well as cushioning the mirror by absorbing shocks. A secondary back of satin coat steel is also applied for maximum protection.
|
|
SERIES 3200 - HEAVY DUTY
Angle Frame: Frame is rigidly formed of . (19mm)_X 1 (25mm) type 304, 18 gauge #4 brush finished stainless steel. All corners are heliarc welded, ground smooth, and polished to #4 brush finish.
Mirror: No.1 selected polished 6mm float glass with chemically deposited silver, electrolytically copper
plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type B, and guaranteed against silver spoilage for a period of ten years.
|
| | | |
|---|
-
Available in Stock and Custom sizes.
-
In addition to standard glazing all Series 3200 frames are available with Acrylic, Tempered, Laminated or Stainless Steel glazing.
|
Standard Finishes/Colours.
|
9143
|
9142 White
|
9142 Red
|
9142 Green
|
|
|
|
|
|
|
9142 Gold
|
9142 Blue
|
9113
|
9109
|
|
|
|
|
|
|
9106
|
9104
|
9103
|
9100
|
|
|
|
|
|
-
Disclaimer: Please note that as the process to manufacture AntiqueMirror is done manually, the samples shown are for reference only
and not a consistent or guaranteed representation of the mirror.
-
Available in 3mm, 5mm and 6mm thickness.
-
#9142 style available in custom colours.
-
#9106 (Gold Vein) finish can be applied to any other Antique type.
-
We can also apply the finish to YOUR own glass - including 10mm.
-
Some types of Antique Mirror can be customized with a more aggressive finish.
|
| |
|---|
New Acid Etch Antique Mirror Finish Available
-
Creates a more subtle, non reflective look.
-
The glass is treated prior to the antique process and produces a matt finish as opposed to the regular clear finish.
-
See below for comparison to our regular antique finish.
|
9100
|
9100A
|
9103
|
9103A
|
9143
|
9143A
|
|
|
|
|
|
|
|
|
|
Wide Framed Decorative Mirrors
Wide Framed Decorative Theft Resistant Mirrors
|
Riviera
|
Bel Air
|
Viper
|
Cutlass
|
Phantom
|
|
|
|
|
|
|
|
Security Mirror Industries Limited has designed a "High End" theft resistant stainless steel
framed mirror that looks good in any installation - from fast food restaurants to expensive steak
houses to residential settings.
Named after a few of our favorite classic cars from the past, these new models will add class
when "parked" in any dιcor. The new
Classic Series come with a 3" wide frame and are available in 5 different models and 5 different sizes!
Want to create something unique and different? Try one glazed with one of our beautiful
Antique Mirror patterns or with a mirror finished polished stainless steel insert.
| Model | Finish |
|---|
| Bel Air | Brushed Etched Silver S.S. "Distinctive beauty and style" |
| Cutlass | Brushed Black S.S. "Sweet, smooth and sassy" |
| Phantom | S.S. Mirror on Mirror. "Excitingly different, luxury defined" |
| Riviera | Hairline Rose Gold S.S. "Cool, classy and elegant" |
| Viper | Brushed Satin S.S. "A class of its own" |
Features and Benefits
- 5mm clear mirror
- 3" wide stainless steel frame
- Anti-Fingerprint Coating (on some models)
- Non-Moisture absorbent shock resistant primary backing
- Theft Resistant integral hanging system - "Residential" concealed hooks available.
- Available glazing options; Tempered Mirror, Laminated Mirror, Acrylic Mirror, Stainless Steel Mirror and Antique Mirror.
- Standard Sizes: 18 x 24, 18 x 30, 18 x 36, 24 x 30, 24 x 36
Available fully glazed, kit sizes or individual/case lengths. Several colour options,custom sizes.
Convex / Dome Detection Mirrors
|
ICM, Indoor Acrylic Convex Mirror
Convex Frame: Provides a wide angled view to see around corners and hidden areas. Helps to reduce accidents and discourages shoplifting. Recommended to be used for locations where glass mirrors might prove hazardous, as in food processing plants, hospitals,schools institutions and retail stores. Fully adjustable to almost any angle, these mirrors add further security and safety to all retail institutional and industrial applications.
Mirror: Made from 3mm acrylic. Recommended in locations where glass mirror may not be desired. Convex shape provides panoramic view.
|
|
ECM, Outdoor Acrylic Convex Mirror
Convex Frame: Provides a wide angled view to see around corners and hidden areas. Helps to reduce accidents and discourages shoplifting. Recommended to be used for locations where glass mirrors might prove hazardous, as in food processing plants, hospitals,schools institutions and retail stores. Fully adjustable to almost any angle, these mirrors add further security and safety to all retail institutional and industrial applications.
Mirror: Made from 3mm acrylic. Recommended in locations where glass mirror may not be desired. Convex shape provides panoramic view.
Outdoor Features: The ECM Outdoor mirrors are manufactured with a special UV resistant, light colour vinyl backing. All sizes 18" and larger come with two mounting brackets for extra strength and support.
|
|---|
| | | |
|---|
|
SPVV, "Super" Outdoor Acrylic Convex Mirror
Convex Frame: Provides a wide angled view to see around corners and hidden areas. Helps to reduce accidents and discourages shoplifting. Recommended to be used
for locations where glass mirrors might prove hazardous, as in food processing plants, hospitals,schools institutions and retail stores. Fully adjustable to almost any angle, these mirrors add further security and safety to all retail institutional and industrial applications.
Mirror: Made from 3mm acrylic. Recommended for outdoor locations. Convex shape provides panoramic view clear glass.
Outdoor Features: The SPVV Outdoor mirrors have a special metal protective backing with sealed edges for maximum weather protection. All sizes 18" and larger come with two mounting brackets for extra strength and support.
|
|
Stainless Steel Indoor & Outdoor Convex Mirror
|
| | | |
|---|
|
FHD, 360° Full Dome Mirror
Hemispheric Mirror: Helps eliminate blind spots in hallways or intersections. Reduces the risk of
accidents and shoplifting.
Mirror: 360 half dome style for wall to ceiling applications. Lightweight, solid acrylic.
|
|
HHD, 180° Half Dome Mirror
Hemispheric Mirror: Helps eliminate blind spots in hallways or intersections. Reduces the risk of
accidents and shoplifting.
Mirror: 180 half dome style for wall to ceiling applications. Lightweight, solid acrylic.
|
| | | |
|---|
|
QHD, 90° Quarter Dome Mirror
Hemispheric Mirror: Helps eliminate blind spots in hallways or intersections. Reduces the risk of
accidents and shoplifting.
Mirror: 90 quarter dome style ideal for corners.Lightweight, solid acrylic construction.
|
|
AFDM, Adjustable Flat Detection Mirror
Channel Frame: One piece frame formed of 3 / 8 (9.53mm)X ½ (12.7mm) X 3/8 (9.53mm) type T430 BA stainless steel. Frame has square,tightly mitered corners, with unique concealed screw fixings to ensure easy field mirror
replacement. Plastic protective coating placed on frame.
Mirror: No.1 selected polished 3 mm float glass with chemically deposited silver, electrolytically copper
plated followed by a heavy coating of tough elastic paint. Mirrors conforming to GSB 12-GD5A Type B and guaranteed against silver spoilage for a period of ten years.
|
| | | |
|---|
|
|
Cold Rolled Steel Domed Mirror
Formed from 18 gauge cold rolled steel,nickel plated and chrome coated, this extra sturdy mirror is resistant to heat and abrasives. Ideal for all institutions and public areas, indoor or outdoor.
|
| | | |
|---|
- AFDM, Adjustable Flat Detection Mirrors available in custom sizes.
|
Custom and Stock size corner guards available in 18ga #4 Brush and 20ga X-L Buff Stainless Steel. "J" Molding Custom sizes available
in 18ga #4 Brush and 20ga X-L Buff Stainless Steel. Call us with your requirements for custom shearing and bending.
|
Series 3300 "Prison Mirror"
Frameless: Fully laminated with 1/4 " thick masonite complete with 4 mounting holes and 4 stainless steel # 10 X 1 1/2 " R.H one-way tamper proof screws.
Mirror: The 3300 series is a one piece 1/4 side formed 304 stainless steel mirror. Finish in Excel Buff # 8 finish Gauge 20.Finished size is 1/2” smaller than ordered size
|
|
Corner Guards
Corner Guard: One piece stainless steel corner guard.Available in 18 gauge 304 #4 Brush Stainless
Steel OR 20 gauge X-L Buff Stainless Steel Mirror finish.
Options: Available up to 120 in height
Available with or without Eased Edge Available with or without mounting holes.
|
|---|
| | | |
|---|
|

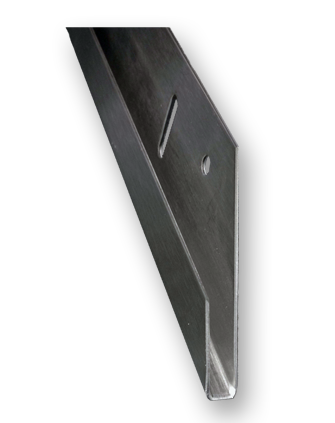

Stainless Steel "J" Molding
"J" Molding Custom sizes available in 18ga #4 Brush and 20ga X-L Buff Stainless Steel.
|
|
Stainless Steel Mirror Clips
Splash Guards
Kick Plates
Corner Shelves
|
|
